esp8266 改造遥控小车
sean 编辑于2021-06-07 13:51硬件相关

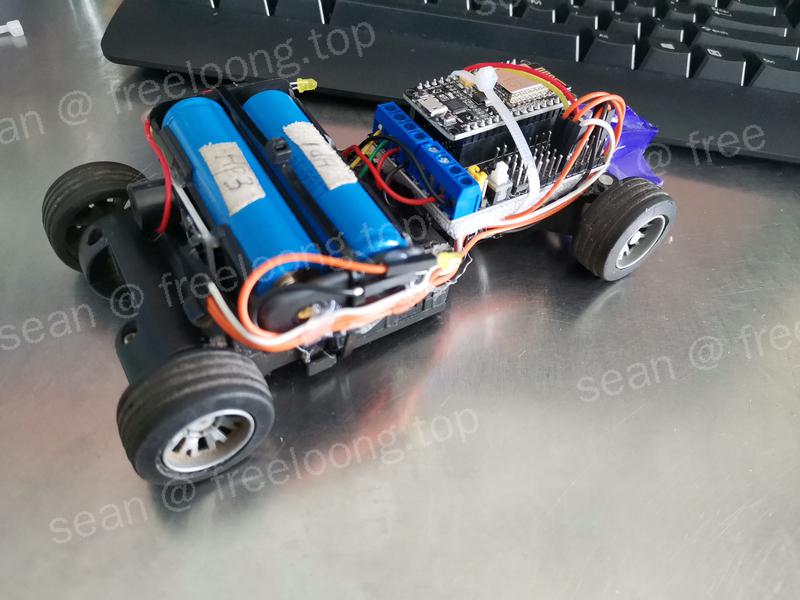

esp8266本身有wifi，加上一个电机驱动板就可以改造无线电机驱动小车。碰巧之前遥控小车无线遥控板被撞坏了，于是就用这套板改造了一下：
这个是这块电机驱动板的接口和node mcu esp8266的接口对应：
目前的代码是单通道的操作，比较笨拙，以后有时间调成易操作性，上代码：
/******************* WiFi Robot Remote Control Mode ********************/
#include <ESP8266WiFi.h>
#include <ESP8266WiFiMulti.h>
#include <ESP8266WebServer.h>
ESP8266WiFiMulti wifimulti;
// connections for drive Motors
int PWM_A = 5; //GPIO5 ,D1 A后轮
int PWM_B = 4; //GPIO4 ,D2 B前轮
int DIR_A = 0; //GPIO0, D3
int DIR_B = 2; //GPIO2, D4
int Light_right_pin = 16; //GPIO16, D0 这三个针的 GＶＯ，都是不是对应的，我买的廉价板，vcc， gnd，out，都是反着的，所以接线也比较特殊，后面看到
int Light_left_pin = 14; //GPIO14, D5 开灯低点平不要奇怪。
int Beep_pin = 12; //GPIO15, D6
String command; // String to store app command state.
int SPEED = 1020; // 330 - 1023.
int speed_Coeff = 3 ; //转弯系数
int forward_count;
int backward_count;
int forward_left_count;
int forward_right_count;
int backward_left_count;
int backward_right_count;
int beep_count;
int left_count; //计数器，指令执行次数，防止无限循环。
int right_count;
ESP8266WebServer server(80); // Create a webserver object that listens for HTTP request on port 80
String webPage = "";
unsigned long previousMillis = 0;
String sta_ssid = "jiji3"; // set Wifi networks you want to connect to maxmum 32 characters
String sta_password = "2ad23aacb82f"; // set password for Wifi networks maxmum 32 characters
String sta1_ssid = "jiji2";
String sta1_password = "c0126288c079";
String sta2_ssid = "abc";
String sta2_password = "abc";
String my_passwd = "abcd";
void setup() {
Serial.begin(115200); // set up Serial library at 115200 bps
Serial.println();
Serial.println("*WiFi Robot Remote Control Mode*");
Serial.println("--------------------------------------");

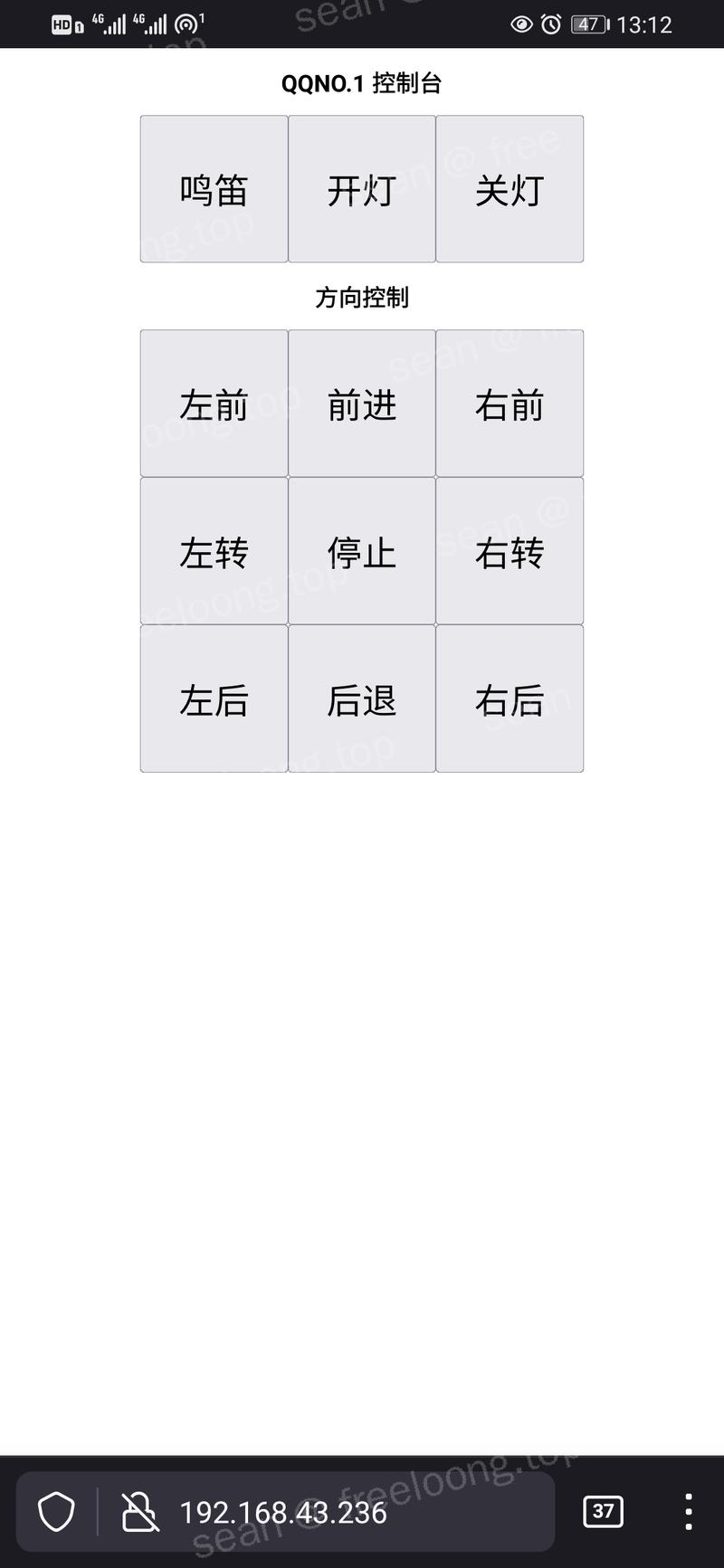

webPage += "<html>";
webPage += "<head>";
webPage += "<meta http-equiv=content-type content=text/html; charset=UTF-8>";
webPage += "</head>";
webPage += "<div align=\"center\"><h1>QQNO.1 控制台</h1>";
webPage += "<a href=\"?state=beep\"><button style=\"height:200px;width:200px\"><font size=\"20\">鸣笛</font></button></a>";
webPage += "<a href=\"?state=lighton\"><button style=\"height:200px;width:200px\"><font size=\"20\">开灯</font></button></a>";
webPage += "<a href=\"?state=lightoff\"><button style=\"height:200px;width:200px\"><font size=\"20\">关灯</font></button></a>";
webPage += "</div>";
webPage += "<div align=\"center\"><h1>方向控制</h1>";
webPage += "<a href=\"?state=forwardleft\"><button style=\"height:200px;width:200px\"><font size=\"20\">左前</font></button></a>";
webPage += "<a href=\"?state=forward\"><button style=\"height:200px;width:200px\"><font size=\"20\">前进</font></button></a>";
webPage += "<a href=\"?state=forwardright\"><button style=\"height:200px;width:200px\"><font size=\"20\">右前</font></button></a>";
webPage += "<br>";
webPage += "<a href=\"?state=left\"><button style=\"height:200px;width:200px\"><font size=\"20\">左转</font></button></a>";
webPage += "<a href=\"?state=stop\"><button style=\"height:200px;width:200px\"><font size=\"20\">停止</font></button></a>";
webPage += "<a href=\"?state=right\"><button style=\"height:200px;width:200px\"><font size=\"20\">右转</font></button></a><br>";
webPage += "<a href=\"?state=backwardleft\"><button style=\"height:200px;width:200px\"><font size=\"20\">左后</font></button></a>";
webPage += "<a href=\"?state=backward\"><button style=\"height:200px;width:200px\"><font size=\"20\">后退</font></button></a>";
webPage += "<a href=\"?state=backwardright\"><button style=\"height:200px;width:200px\"><font size=\"20\">右后</font></button></a>";
webPage += "</div>";
//webPage += "<div align=\"center\"><h1>速度更改</h1>";
//webPage += "<a href=\"?state=1\"><button style=\"height:200px;width:200px\"><font size=\"20\">1</font></button></a>";
//webPage += "<a href=\"?state=2\"><button style=\"height:200px;width:200px\"><font size=\"20\">2</font></button></a>";
//webPage += "<a href=\"?state=3\"><button style=\"height:200px;width:200px\"><font size=\"20\">3</font></button></a><br>";
//webPage += "<a href=\"?state=4\"><button style=\"height:200px;width:200px\"><font size=\"20\">4</font></button></a>";
//webPage += "<a href=\"?state=5\"><button style=\"height:200px;width:200px\"><font size=\"20\">5</font></button></a>";
//webPage += "<a href=\"?state=6\"><button style=\"height:200px;width:200px\"><font size=\"20\">6</font></button></a><br>";
//webPage += "<a href=\"?state=7\"><button style=\"height:200px;width:200px\"><font size=\"20\">7</font></button></a>";
//webPage += "<a href=\"?state=8\"><button style=\"height:200px;width:200px\"><font size=\"20\">8</font></button></a>";
//webPage += "<a href=\"?state=9\"><button style=\"height:200px;width:200px\"><font size=\"20\">9</font></button></a>";
//webPage += "</div>";
webPage += "</html>";
pinMode(Light_right_pin, OUTPUT);
digitalWrite(Light_right_pin, HIGH);
pinMode(Light_left_pin, OUTPUT);
digitalWrite(Light_left_pin, HIGH);
pinMode(Beep_pin, OUTPUT);
digitalWrite(Beep_pin, HIGH);
//pinMode(Beep_pin, OUTPUT);
// Set all the motor control pins to outputs
pinMode(PWM_A, OUTPUT);
pinMode(PWM_B, OUTPUT);
pinMode(DIR_A, OUTPUT);
pinMode(DIR_B, OUTPUT);
// Turn off motors - Initial state
digitalWrite(DIR_A, LOW);
digitalWrite(DIR_B, LOW);
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
// set NodeMCU Wifi hostname based on chip mac address
// String chip_id = String(ESP.getChipId(), HEX);
//int i = chip_id.length()-4;
//chip_id = chip_id.substring(i);
//chip_id = "QQNO.2-" + chip_id;
String chip_id = "QQNO.1";
String hostname(chip_id);
Serial.println();
Serial.println("Hostname: " + hostname);
// first, set NodeMCU as STA mode to connect with a Wifi network
//WiFi.mode(WIFI_STA);
//WiFi.begin(sta_ssid.c_str(), sta_password.c_str());
wifimulti.addAP(sta_ssid.c_str(), sta_password.c_str());
wifimulti.addAP(sta1_ssid.c_str(), sta1_password.c_str());
wifimulti.addAP(sta2_ssid.c_str(), sta2_password.c_str());
// try to connect with Wifi network about 10 seconds
unsigned long currentMillis = millis();
previousMillis = currentMillis;
//while (WiFi.status() != WL_CONNECTED && currentMillis - previousMillis <= 10000) {
while (wifimulti.run() != WL_CONNECTED && currentMillis - previousMillis <= 7000) {
delay(500);
Serial.print(".");
currentMillis = millis();
}
// if failed to connect with Wifi network set NodeMCU as AP mode
if (wifimulti.run() == WL_CONNECTED) {
Serial.println("");
Serial.println("*WiFi-STA-Mode*");
Serial.print("IP: ");
Serial.println(WiFi.localIP());
Serial.println("");
Serial.print("Conneced to: ");
Serial.println(WiFi.SSID());
//digitalWrite(wifiLedPin, LOW); // Wifi LED on when connected to Wifi as STA mode
delay(3000);
} else {
WiFi.mode(WIFI_AP);
WiFi.softAP(hostname.c_str(), my_passwd.c_str());
IPAddress myIP = WiFi.softAPIP();
Serial.println("");
Serial.println("WiFi failed connected to " + sta_ssid + " or " + sta1_ssid);
Serial.println("");
Serial.println("*WiFi-AP-Mode*");
Serial.print("AP IP address: ");
Serial.println(myIP);
//digitalWrite(wifiLedPin, HIGH); // Wifi LED off when status as AP mode
delay(3000);
}
server.on ( "/", root_handle ); // call the 'handleRoot' function when a client requests URI "/"
server.onNotFound (root_handle ); // when a client requests an unknown URI (i.e. something other than "/"), call function "handleNotFound"
server.begin(); // actually start the server
}
void loop() {
server.handleClient(); // listen for HTTP requests from clients
command = server.arg("state"); // check HTPP request, if has arguments "State" then saved the value
if (command == "forward" && forward_count == 1) Forward(); // check string then call a function or set a value
else if (command == "backward" && backward_count == 1) Backward();
else if (command == "forwardleft" && forward_left_count == 1) ForwardLeft();
else if (command == "forwardright" && forward_right_count == 1) ForwardRight();
else if (command == "backwardleft" && backward_left_count == 1) BackwardLeft();
else if (command == "backwardright" && backward_right_count == 1) BackwardRight();
else if (command == "right" && right_count == 1) TurnRight();
else if (command == "left" && left_count == 1) TurnLeft();
else if (command == "stop") Stop();
else if (command == "lighton")TurnOnLight();
else if (command == "lightoff")TurnOffLight();
else if (command == "beep" && beep_count ==1)Beep();
}
void root_handle() {
server.send ( 200, "text/html", webPage ); // Send HTTP status 200 (Ok) and send some text to the browser/client
left_count = 1;
right_count = 1;
backward_count = 1;
forward_count = 1;
forward_left_count = 1;
forward_right_count = 1;
backward_left_count = 1;
backward_right_count = 1;
beep_count = 1;
}
//void handle_404() {
// server.send(404, "text/plain", "404: Not found"); // Send HTTP status 404 (Not Found) when there's no handler for the URI in the request
//}
// function to stop motors
void Stop() {
digitalWrite(DIR_A, LOW); //A后轮
digitalWrite(DIR_B, LOW); //B前轮
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
// function to move forward
void Forward() {
digitalWrite(DIR_A, HIGH); //A后轮
digitalWrite(DIR_B, HIGH); //B前轮
analogWrite(PWM_A, SPEED);
analogWrite(PWM_B, 0);
delay(400);
if (forward_count > 0)
{
forward_count -= 1;
}
if (forward_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
void ForwardLeft() {
digitalWrite(DIR_A, HIGH); //A后轮
digitalWrite(DIR_B, LOW); //B前轮
analogWrite(PWM_A, SPEED);
analogWrite(PWM_B, SPEED);
delay(400);
if (forward_left_count > 0)
{
forward_left_count -= 1;
}
if (forward_left_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
void ForwardRight() {
digitalWrite(DIR_A, HIGH); //A后轮
digitalWrite(DIR_B, HIGH); //B前轮
analogWrite(PWM_A, SPEED);
analogWrite(PWM_B, SPEED);
delay(400);
if (forward_right_count > 0)
{
forward_right_count -= 1;
}
if (forward_right_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
// function to move backward
void Backward() {
digitalWrite(DIR_A, LOW);
digitalWrite(DIR_B, LOW);
analogWrite(PWM_A, SPEED);
analogWrite(PWM_B, 0);
delay(400);
if (backward_count > 0)
{
backward_count -= 1;
}
if (backward_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
void BackwardRight() {
digitalWrite(DIR_A, LOW); //A后轮
digitalWrite(DIR_B, HIGH); //B前轮
analogWrite(PWM_A, SPEED);
analogWrite(PWM_B, SPEED);
delay(400);
if (backward_right_count > 0)
{
backward_right_count -= 1;
}
if (backward_right_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
void BackwardLeft() {
digitalWrite(DIR_A, LOW); //A后轮
digitalWrite(DIR_B, LOW); //B前轮
analogWrite(PWM_A, SPEED);
analogWrite(PWM_B, SPEED);
delay(400);
if (backward_left_count > 0)
{
backward_left_count -= 1;
}
if (backward_left_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
// function to turn right
void TurnRight() {
digitalWrite(DIR_A, HIGH);
digitalWrite(DIR_B, HIGH);
analogWrite(PWM_A, 0); //后轮停转
analogWrite(PWM_B, SPEED);
delay(300);
if (right_count > 0)
{
right_count -= 1;
}
if (right_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
// function to turn left
void TurnLeft() {
digitalWrite(DIR_A, HIGH);
digitalWrite(DIR_B, LOW);
analogWrite(PWM_A, 0); //后轮停转
analogWrite(PWM_B, SPEED);
delay(300);
if (left_count > 0)
{
left_count -= 1;
}
if (left_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
}
}
void TurnOnLight() {
digitalWrite(Light_right_pin, LOW);
digitalWrite(Light_left_pin, LOW);
delay(300);
}
void TurnOffLight() {
digitalWrite(Light_right_pin, HIGH);
digitalWrite(Light_left_pin, HIGH);
delay(300);
}
void Beep() {
digitalWrite(Beep_pin, LOW);
delay(600);
digitalWrite(Beep_pin, HIGH);
delay(300);
digitalWrite(Beep_pin, LOW);
delay(600);
if (beep_count > 0)
{
beep_count -= 1;
}
if (beep_count == 0) {
analogWrite(PWM_A, 0);
analogWrite(PWM_B, 0);
digitalWrite(Beep_pin, HIGH);
}
}关于本站
